Apple Vision Pro Inputs in Unity

Overview

I will explain how to integrate basic input in Vision Pro using Unity. I will tell you how to add pinch, pinch and move, direct poke and gaze pinch. There are some prerequisites for the development in Vision OS and I will guide you with each step. In the end we will make a game in Unity where a car rotates left/right with the steering wheel.

Prerequisites

Unity 2022.3 (LTS) or later
Xcode 15 beta 2.
VisionOS Simulator
Apple Silicon (M1/M2) Mac in order to compile for visionOS
visionOS Build Support (experimental) and iOS Build Support
Universal Render Pipeline (URP) preferred or the Built-in Render Pipeline
Unity Pro Licence

Source

Getting Started

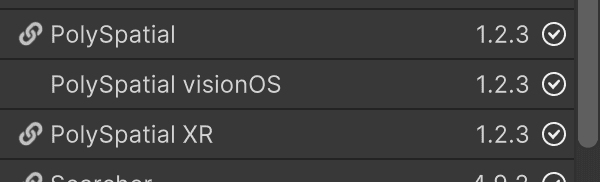

In order to get started, you need Polyspatial to be installed in your project. You can either enable it in Edit > Project Settings > PolySpatial > Enable PolySpatial Runtime or add it as a Package in Package Manager

com.unity.polyspatial
com.unity.polyspatial.xr
com.unity.polyspatial.visionos

Input with Direct Poke or Pinch

You will need to have a Volume Camera working for rendering the game, the settings required for Bounded/Unbounded camera and the XR Management settings with Apple XR enabled. For that, do the following

Import Unity Polyspatial Samples from com.unity.polyspatial package
Add Volume Camera from Heirarchy->XR->Setup->Volume Camera
Add the Bounded_VolumeCameraConfiguration in Volume Window Configuration
Add Usage Description in Project Settings -> XR Plugin Management -> Apple visionOS
Change the App Mode to Mixed Reality

Follow the steps listed here for more details.

Now follow the following steps

Create a Cube in the scene
Reset the Camera to 0,0,-1
Scale it so that it is inside the Volume Camera 0.1, 0.1, 0.1
Create an Empty GameObject called InputManager
Add a script to InputManager and name it ColorChangeOnInput.cs
Replace it with the following script

using UnityEngine;
using Unity.PolySpatial.InputDevices;
using UnityEngine.InputSystem.EnhancedTouch;
using Touch = UnityEngine.InputSystem.EnhancedTouch.Touch;
using TouchPhase = UnityEngine.InputSystem.TouchPhase;
using UnityEngine.InputSystem.LowLevel;


public class ColorChangeOnInput : MonoBehaviour
{
    private void OnEnable()
    {
        EnhancedTouchSupport.Enable();
    }

    private void Update()
    {
        if(Touch.activeTouches.Count > 0)
        {
            foreach (var touch in Touch.activeTouches)
            {
                if(touch.phase == TouchPhase.Began)
                {
                    SpatialPointerState touchData = EnhancedSpatialPointerSupport.GetPointerState(touch);
                    if(touchData.targetObject != null)
                    {
                        // Now we are pinching/direct poking
                        ChangeObjectColor(touchData.targetObject);
                        break;
                    }
                }
            }
        }
    }

    private void ChangeObjectColor(GameObject obj)
    {
        var renderer = obj.GetComponent<Renderer>();
        if(renderer != null)
        {
            renderer.material.color = new Color(Random.value, Random.value, Random.value);
        }
    }
}

This script will change the color of the Cube when you look at it and pinch or poke the cube.

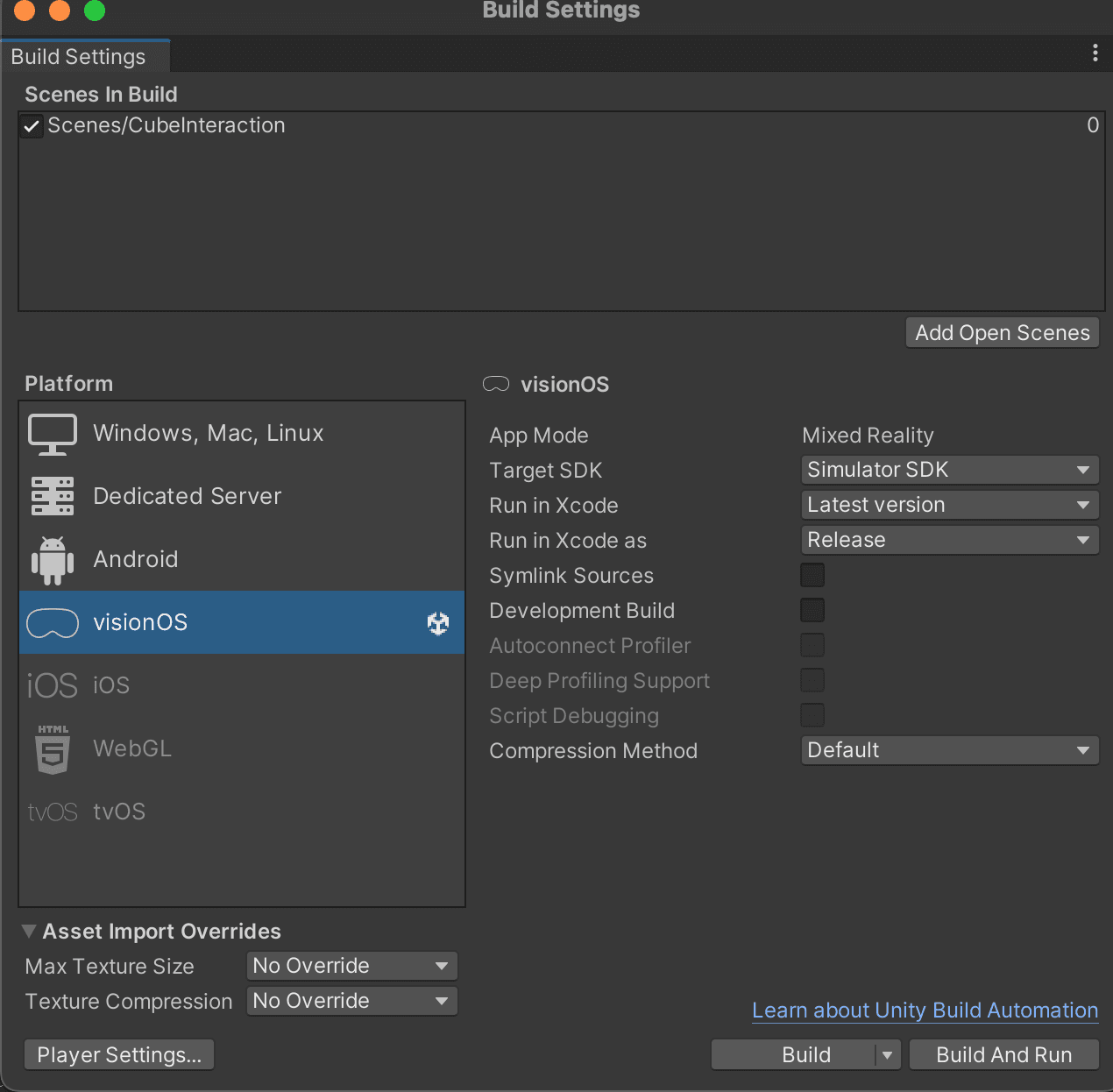

Run the scene in Unity and on clicking the cube, a random color will be set. You can test the scene in the Vision OS Simulator by building for the Simulator in Build Settings and running through XCode. Make sure to change the Target SDK to Simulator SDK

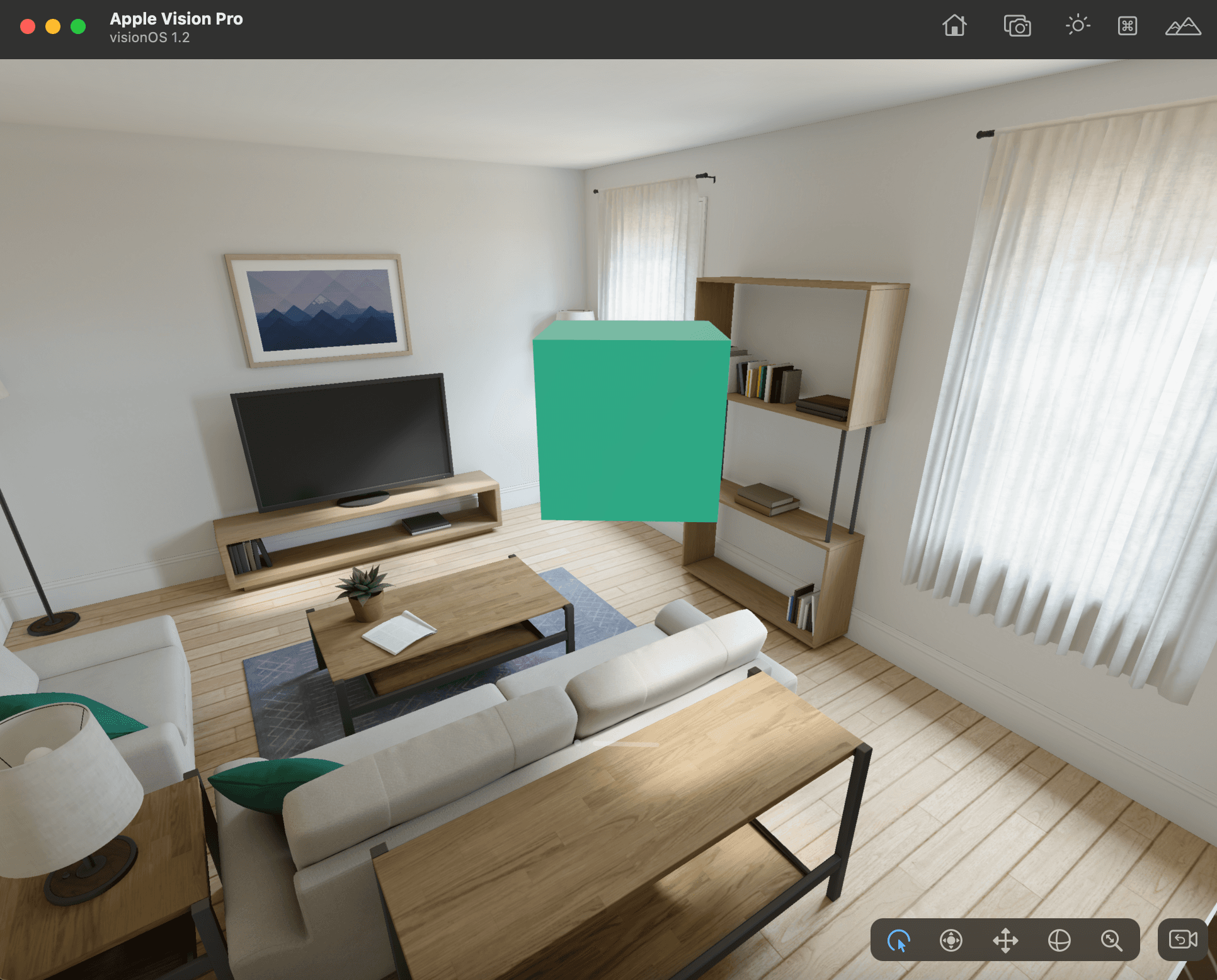

Here is how it should look like in simulator. Click on the cube to change it's color.

Input with Pinch Move

Create a new script and call it RotateObjectOnInput.cs. This script will create an input when the user pinches the target object and moves the pinch. The target should rotate.

using UnityEngine;
using Unity.PolySpatial.InputDevices;
using UnityEngine.InputSystem.EnhancedTouch;
using Touch = UnityEngine.InputSystem.EnhancedTouch.Touch;
using TouchPhase = UnityEngine.InputSystem.TouchPhase;
using UnityEngine.InputSystem.LowLevel;

public class RotateObjectOnInput : MonoBehaviour
{
    public float rotationSpeed = 0.1f;
    public float followRotationSpeed = 0.1f;
    public GameObject followingObject;

    private GameObject selectedObject;
    private Vector3 lastInteractionPosition;

    private void OnEnable()
    {
        EnhancedTouchSupport.Enable();
    }

    private void Update()
    {
        if (Touch.activeTouches.Count > 0)
        {
            foreach (var touch in Touch.activeTouches)
            {
                SpatialPointerState touchData = EnhancedSpatialPointerSupport.GetPointerState(touch);
                if (touchData.targetObject != null && touchData.Kind != SpatialPointerKind.Touch)
                {

                    // Now we are pinching
                    if (touch.phase == TouchPhase.Began && touchData.targetObject.CompareTag("Player"))
                    {
                        selectedObject = touchData.targetObject;
                        lastInteractionPosition = touchData.interactionPosition;
                    }
                    else if (touch.phase == TouchPhase.Moved && selectedObject != null)
                    {
                        var deltaPosition = touchData.interactionPosition - lastInteractionPosition;
                        float rotationAmount = deltaPosition.x * rotationSpeed; // Adjust the multiplier as needed
                        selectedObject.transform.Rotate(-Vector3.forward, rotationAmount);
                        lastInteractionPosition = touchData.interactionPosition;
                    }
                }
            }
        }

        if (Touch.activeTouches.Count == 0)
        {
            selectedObject = null;
        }

        FollowObject();
    }

    private void FollowObject()
    {
        if (selectedObject == null)
            return;
        var lastRotation = followingObject.transform.rotation;
        lastRotation.y = selectedObject.transform.rotation.z * followRotationSpeed * -1f;
        followingObject.transform.rotation = lastRotation;
    }
}

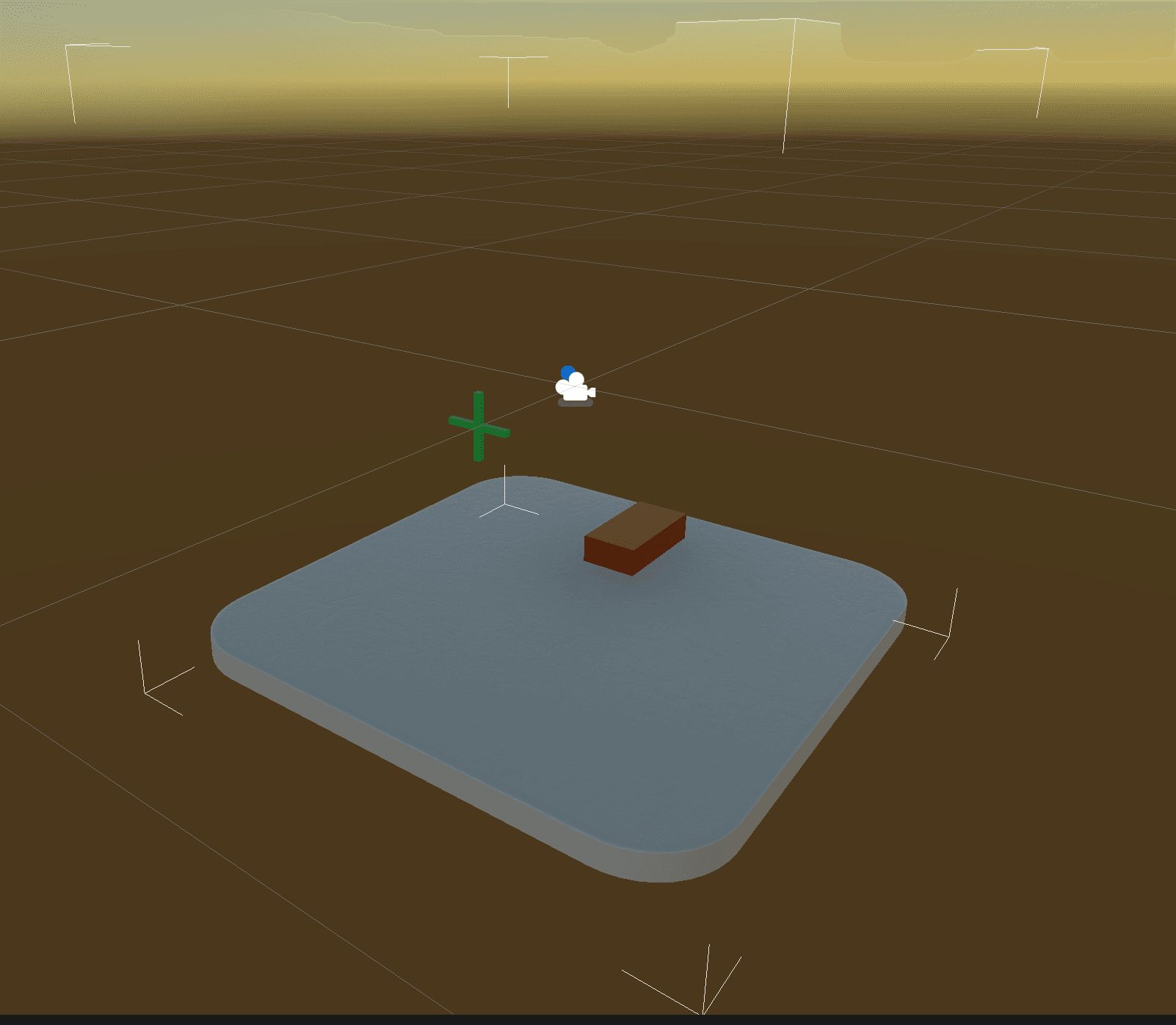

Create two game objects. One that will be the steering wheel of a car and the other will be a car itself.

Attach this script to InputManager gameobject
Remove the old ColorChangeOnInput.cs script
Change RotationSpeed to 100
Change FollowRotationSpeed to 1
Drag the car gameObject in the Following Object
Add tag Player to the steering wheel
Hit Play

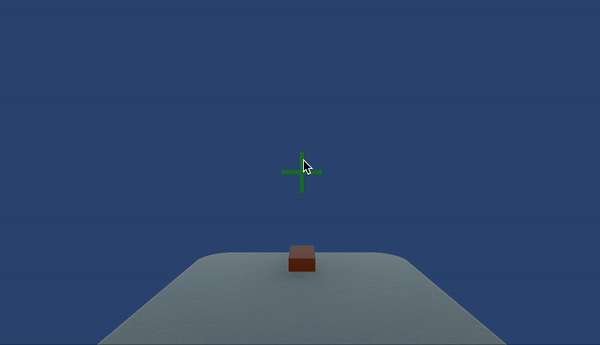

Click the steering wheel and drag it left or right, the wheel moves and the car follows the movement. Adjust the speeds from the inspector if required.

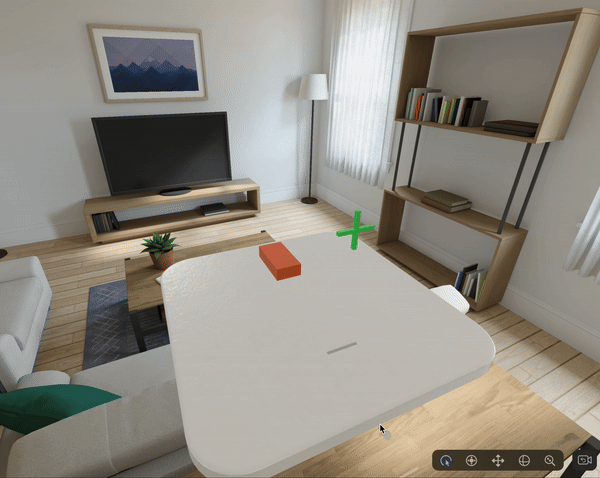

Build the project and try it in the VisionOS Simulator. You will be able to do this when you pinch and move.

Conclusion

This concludes our tutorial. You can add more scenes and also view the samples provided by Unity in Polyspatial samples. Try them out by following this link.

Hope it helps 😄
